P6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mm

Product Categories
Shenzhen Longvision Technology Co., Ltd.
Contact Now

P6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mm

Brand Name : Longvision

Model Number : LI series

Certification : CE, ROHS, UL, FCC

Place of Origin : Guangdong, China

MOQ : 2 Square Meters

Price : negotiable

Payment Terms : T/T

Supply Ability : 3000 Square Meter/Square Meters per Month

Delivery Time : 7-20 work days

Packaging Details : wooden/carton case

Color : black, White Color

Panel Size : 640*960mm

Pixel Pitch : P4/P5/P6/P8/P10/P16

Brightness : 6500nits

Module size : 320x320mm

Refresh rate : 3840Hz

Cabinet material : Aluminum

Viewing angle : 140H/110V

Installation : Front or Rear

IP rate : IP65

Contact Now

Feature:
1. Die-cast aluminum cabinet, light weight

2. Fast lock for quick installation, only takes 10 seconds

3. Full frontal maintenance, direct wall mounting

4. High-precision led screen cabinet, extending service life

Specification

Model number PH6
Pixch pitch 6mm
Pixel Density(dots/m2) 27777
Pixel Configuration SMD3528 3 IN1
Module size (mm) 192*192
Module resolution (dots) 32*32
Cabinet size (mm) 576*576
Scanning method 1/8
Brightness (cd/m2) 4000
Min. viewing distance ≥3
Viewing angle ( 50% brightness ) ≤150°
Screen fresh rate LED screen refresh frame freauency recommended is no less than 1200HZ(recommended)
Average Power Consumption(w/m2) 800
IP grade ( Waterproof Grade ) IP67
Screen thickness 8cm
Control system LINSN , Nova ,HD , XIXUN.....
Input Voltage AC220 V/50HZ or AC 110V/60HZ
Gray Scale Recommended 14bit
Printed Circuit Board(PCB) 4 Layer
Color Temperature The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Color 64g color(on the condition of 4096 gray scale)
Effective Communication Distance(without relay) Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.
Cabinet Die casting aluminum cabinet
Cabinet weight 8KG/PCS
Warranty 3 years

Product Discription

P6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mmP6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mmP6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mmP6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mm

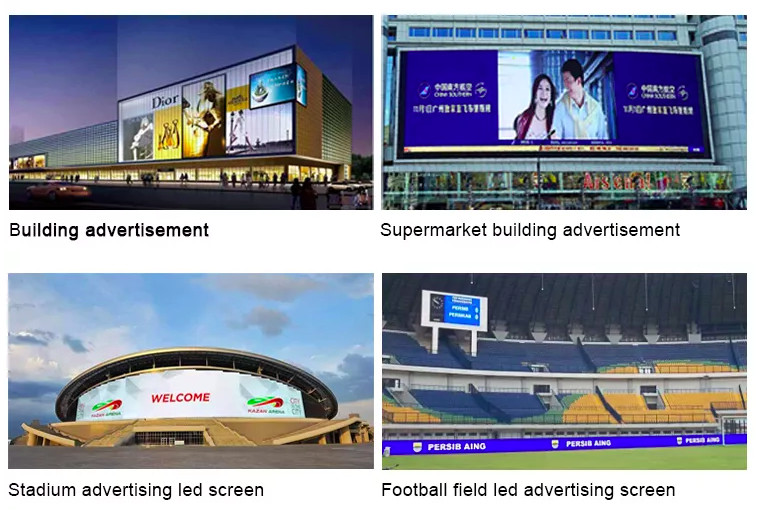

Application

P6 P8 P10 10mm Large Outdoor Led Advertising Display SMD3535 320x160mm

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
